Solution

Sample code folder: Chapter 01\Forms Version Create a Windows
Forms application, and add the appropriate controls and logic.

Discussion

Start Visual Studio 2005, and then create a new project. The Start
Page includes a link to do this, or you can use the File New Project
menu command. The New Project dialog appears, as shown in Figure
1-1.

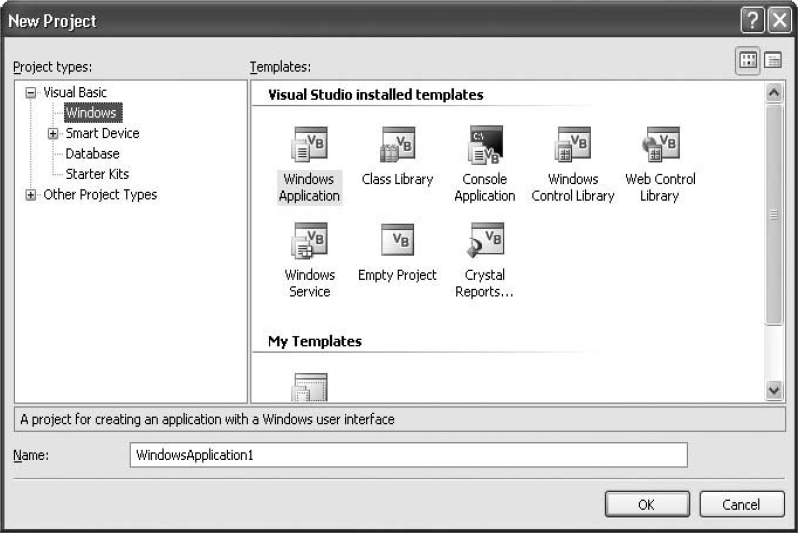

Figure 1-1. Visual Studio’s New Project dialog

Each template listed in this dialog starts with the most basic and
empty Visual Basic project and adds just enough source code and
configuration settings to get you started on the selected application
type. You could choose the Blank Solution template and work your
way up to the functionality provided through the Windows Application
template, but that’s more than we need to accomplish right now.
Select Visual Basic (or the Windows entry under Visual Basic) in the
“Project types” field and Windows Application in the Templates field,
enter the name of your project in the Name field (let’s call ours
“FormConvertTemp”), and click the OK button.

As Visual Studio works behind the scenes to configure the initial
project features, let’s take a few minutes to review some high school
science. The three temperature systems in this programFahrenheit,
Celsius, and kelvinare often used to measure heat in the various
scientific disciplines:
In the Celsius (or Centigrade) scale, water freezes at 0°C and
reaches its boiling point at 100°C. This makes it a pretty simple
measurement system, at least where water is concerned. Celsius
is used as the common temperature measurement system in
most countries.
The Fahrenheit system uses the environment of its founder,
Gabriel Fahrenheit, as its basis for measurement. 0°F, at the
lower end of the 0-to-100 scale, is rumored to be the coldest
temperature that Fahrenheit measured near his home one winter.
The 100°F mark is based on his own body temperature. This
system, used in America and a few other locations, is especially
convenient if you are a German scientist with a slight fever.
The kelvin system uses the same scale size as the Celsius
system, but places 0K at absolute zero, the theoretical
temperature at which all super-quantum molecular activity
ceases. 0K is equivalent to-273.15°C, and all other temperatures
on the kelvin scale are converted to Celsius through a simple
adjustment of that same 273.15°value. Kelvin is one of the seven
base SI (Système International d’Unités) units of measure and is
used in scientific work.
The ability to convert between the different systems is important, not
only for international relations, but also for health considerations
(“Mom, I’m too sick to go to school today; I have a temperature of
310.15K!”).
By now, Visual Studio should have completed its work and presented
you with the initial project form (Figure 1-2).

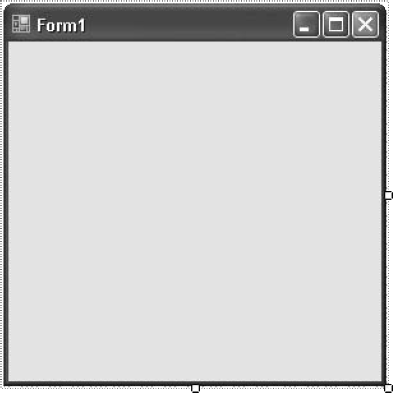

Figure 1-2. Your project’s initial form

The form you see represents the initial main form of your application.
It is part of a project, a collection of files usually tied to a single target,
such as an application, a dynamic-link library, or some other output. In
Windows Forms projects, the target is an executable file (with an EXE
file extension) that contains a compiled .NET application. All of the
files in your project are listed in the Solution Explorer, one of the
standard tool windows in Visual Studio (Figure 1-3).
The top edge of the Solution Explorer includes a set of toolbar buttons
that help you “explore the solution.” The most interesting of these buttons is the second from left, the Show All Files button. Clicking this
button toggles the view of files included in your project. Most of the
files included in your application are hidden from view by default.
Visual Studio does an amazing amount of work behind the scenes,
and most of this work is stored in hidden project files. Most of these
files contain code automatically generated by Visual Studio as you
design your program. A few of these files, such as
ApplicationEvents.vb, do contain code that you can update manually,
but most of your development time will focus on the files that are
always displayed.

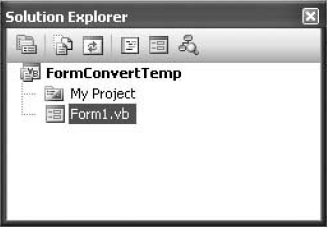

Figure 1-3. The Visual Studio Solution Explorer

The main area of the form is its design surface, on which you place (or
“draw”) controls. The Toolbox (Figure 1-4) contains the controls that
you can add to your form; it’s just one of the many “tool windows”
available within Visual Studio. If it’s not already displayed, open the
Toolbox now through the View Toolbox menu command.

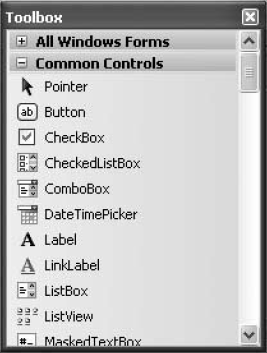

Figure 1-4. Partial view of the Visual Studio Toolbox

The selection of controls included in the Toolbox varies based on the
active project and window. Beyond the default controls, several third
parties offer enhanced controls for use in your projects. Once
installed, these controls also appear in the Toolbox.
Each form or control has a default configuration, as determined by the
developer of the control. You can alter this configuration by changing
the active form’s or control’s properties through the Properties window
(Figure 1-5). If it is not already in view, display the Properties window
with the View Properties Window menu command.

Figure 1-5. Partial view of the Properties window

The properties for the active item are pretty easy to adjust: select the
form or control you want to modify, select a property in the Properties
window based on the property name in the left column, and use the
mouse or keyboard to modify its value in the right column. Some
properties can be expanded into distinct sub-properties using the plus
sign (+) to the left of the property name. And while most properties
accept simple text values, others have mouse-friendly drop-down
editors.
Before adding controls to our form, let’s configure the properties of the
form itself. Using the Properties window, set the form’s properties as
shown in Table 1-1. This table lists only those properties that deviate
from their default settings.

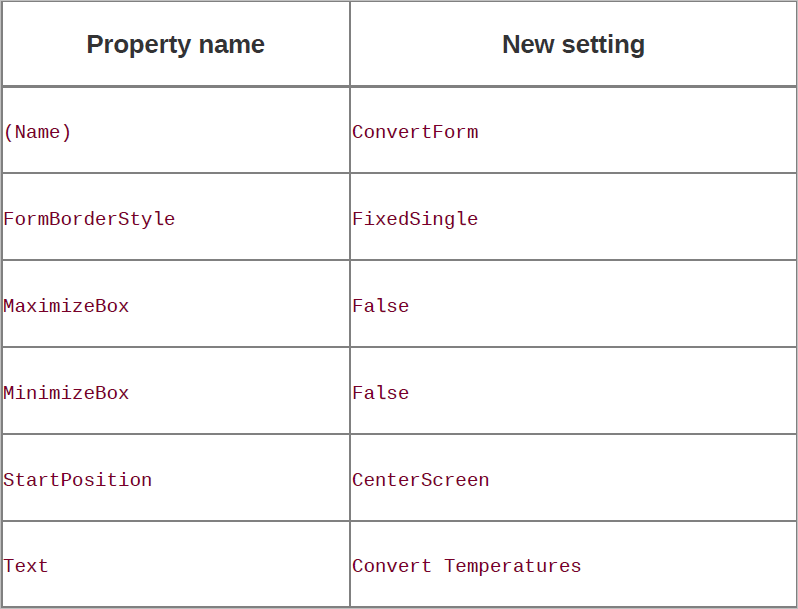

Table 1-1. Application form property changes

Now let’s add the controls to the form. This project will use seven
controls:
Three RadioButton controls to select the source temperature
system
Three TextBox controls for entering and displaying temperatures

One Button control to initiate the conversion
Use the Toolbox to select and add controls to the form. Add a control
either by double-clicking on the control in the Toolbox or by selecting
the control in the Toolbox and then “drawing” it on the surface of the
form using the mouse. Go ahead and add the three RadioButton
controls, three TextBox controls, and one Button control, and arrange
them so that your form resembles Figure 1-6. You may also want to
resize the form to visually fit the contained controls.

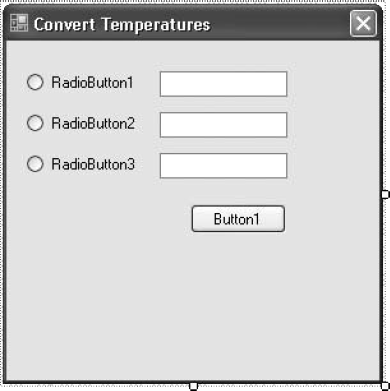

Figure 1-6. Project form with included controls

Some of the properties in these controls also need to be adjusted. Use
the values in Table 1-2 to guide you through the property updates.

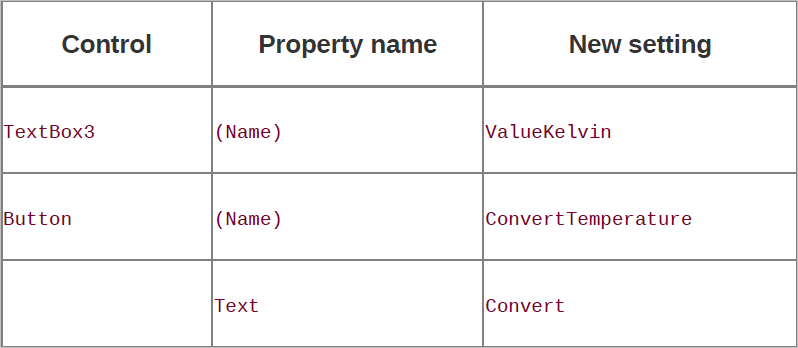

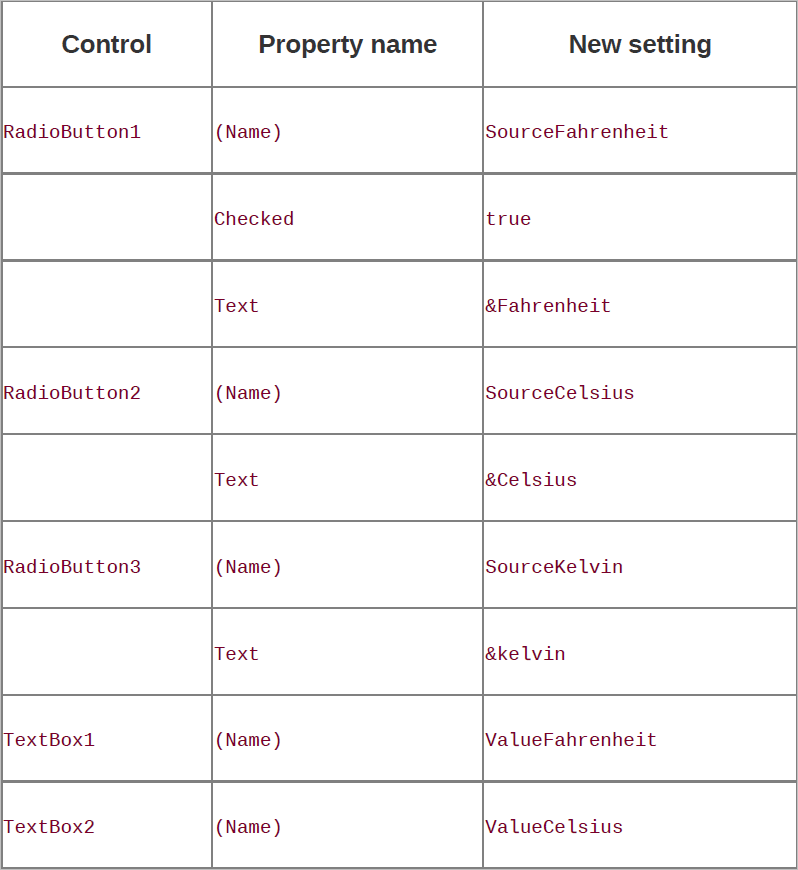

Table 1-2. Custom property settings for each control

The “&” character added to some of the properties sets the keyboard
shortcut for that control so that the user can activate it with the Alt+key
keyboard sequence.
There are two more tasks to perform on the form itself before we start
writing code, both destined to make the form easier to use. The first is
to allow the Enter or Return key to act like a click on the
ConvertTemperature button. This is done by setting one of the form’s
properties: AcceptButton. Setting this property to the name of a valid
controlin this case, the ConvertTemperature button controlenables this
keyboard action. Go ahead and set the form’s AcceptButton property
now.
The second user-friendly update involves setting the ” tab order” of the
controls on the form. The Tab key allows the user to move from one
form control to another, but the movement may look somewhat
random to the user unless you specifically declare the order. To set the
tab order, first make sure that the formand not one of its contained
controlsis the active object in the designer window. Then select the
View Tab Order menu command. A small number appears next to
each control. To readjust the tab order, click the controls in the order
you want them to appear (Figure 1-7). You can also set the tab order by altering the TabIndex property of each control, but the mouse
method is generally quicker.

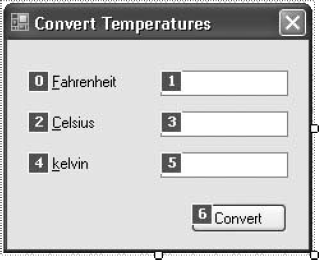

Figure 1-7. Project form with tab order set for each control

When you are finished, select the View Tab Order menu command
once more (or press the Escape key) to return to standard editing.
Now it’s time to program! All of the code for this application will appear
in the ConvertTemperature button’s Click event procedure, which you
can access by double-clicking on the ConvertTemperature button itself.
Visual Studio switches to a code editor with the following event
procedure template ready to use: Public Class ConvertForm Private
Sub ConvertTemperature_Click( _ ByVal sender As System.Object, _
ByVal e As System.EventArgs) _ Handles ConvertTemperature.Click
End Sub End Class

Add the following code to the Click event procedure body. It
determines the source temperature type, checks for valid input, and
then performs the conversion:
‘ —– Convert between Fahrenheit, Celsius, and
kelvin.
On Error Resume Next
If (SourceFahrenheit.Checked = True) Then
‘ —– Convert from Fahrenheit to other
types.
If (IsNumeric(ValueFahrenheit.Text) =
True) Then
‘ —– F->C, F->K.
ValueCelsius.Text = _
(Val(ValueFahrenheit.Text) – 32) /
1.8
ValueKelvin.Text = _
((Val(ValueFahrenheit.Text) – 32) /
1.8) + 273.15
Else
‘ —– Invalid data.
ValueCelsius.Text = “Error”
ValueKelvin.Text = “Error”
End If
ElseIf (SourceCelsius.Checked = True) Then
‘ —– Convert from Celsius to other
types.
If (IsNumeric(ValueCelsius.Text) = True)
Then
‘ —– C->F, C->K.
ValueFahrenheit.Text = _
(Val(ValueCelsius.Text) * 1.8) + 32
ValueKelvin.Text =
Val(ValueCelsius.Text) + 273.15
Else

‘ —– Invalid data.
ValueFahrenheit.Text = “Error”
ValueKelvin.Text = “Error”
End If
Else
‘ —– Convert from kelvin to other
types.
If (IsNumeric(ValueKelvin.Text) = True)
Then
‘ —– K->F, K->C.
ValueFahrenheit.Text = _
((Val(ValueKelvin.Text) – 273.15) *
1.8) + 32
ValueCelsius.Text =
Val(ValueKelvin.Text) – 273.15
Else
‘ —– Invalid data.
ValueFahrenheit.Text = “Error”
ValueCelsius.Text = “Error”
End If
End If
The program is now ready to use in all weather conditions.
Although this program is pure .NET through and through, the only
.NET code we witnessed was through the event handler. The call to
the ConvertTemperature_ Click event happens indirectly in the code;
there is no line of source code, at least in your code, that makes a
direct call to the event handler.
When the user clicks on the ConvertTemperature button, the low-level
device driver for the mouse inserts mouse-down and mouse-up events
into the global Windows input-processing queue. The device driver
doesn’t know anything about the various windows displayed on-screen or about .NET; it reports only that a mouse event occurred at a specific
X and Y position on the screen. The Windows operating system uses
this location to determine which window or control was clicked. Once
that’s determined, it sends relevant messages to the message queue
of the application that owns the clicked window. The application
notifies the clicked control that the user has, in fact, clicked that
control. Finally, the code within the .NET control issues a RaiseEvent
statement, which triggers a call to the ConvertTemperature_Click event
handler.
That’s a lot of steps between your finger and the event handler.
Fortunately, you don’t have to handle all of those steps yourself. The
relevant logic already exists in Windows and in .NET; you just have to
write the event handler and connect it to the specific event through the
handler’s Handles keyword (which Visual Basic 2005generates for
you): Private Sub ConvertTemperature_Click( _ ByVal sender As
System.Object, _ ByVal e As System.EventArgs) _ Handles
ConvertTemperature.Click
The rest of the code in the application is composed of standard logic
and calculations that you might find in code from any programming
language: If conditional statements, assignment statements, and
expression processing with operators such as the multiplication
operator (*).

See Also

The other recipes in this chapter demonstrate how to implement the
same program, using different types of interfaces.
